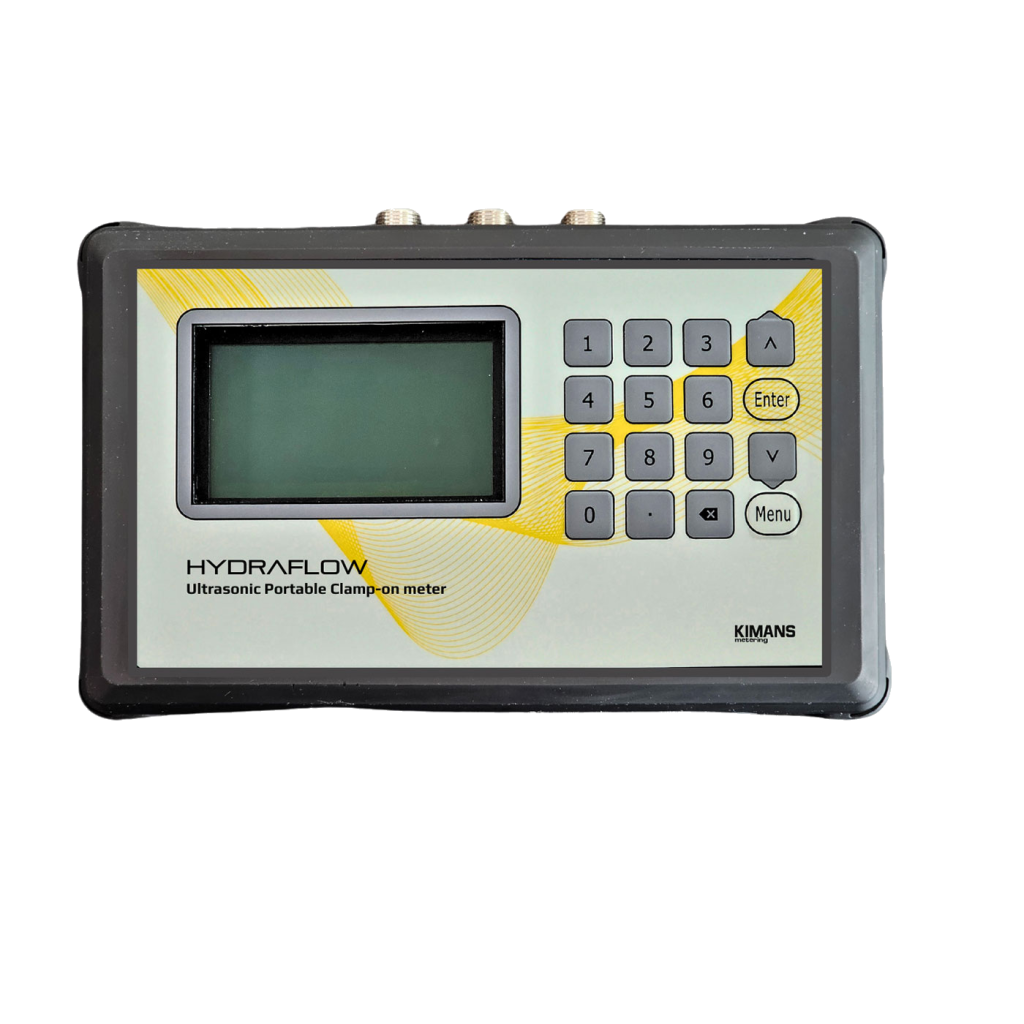

Hydraflow W Clamp-on ultrasonic flow / energy meter
Water flowThermal energyThe Hydraflow W is a wall-mount clamp-on ultrasonic flow and BTU meter for DN25 to DN1200 pipes, measuring bidirectional flow at ±1% of reading with IP68 transducers, Modbus communication and an energy version for thermal BTU metering
- Clamp-on installation for DN25 to DN1200 pipes — no cutting, welding or shutdown
- ±1% of reading accuracy (optional 0.5%) with 0.2% repeatability, ±0.03 to ±12 m/s flow range
- Energy version with 2 × PT1000 RTD inputs for thermal BTU metering of heating and cooling
- IP68 transducers and IP65 transmitter; transducer cable runs up to 274 m
- 4 to 20 mA and 0 to 10 kHz pulse outputs; RS232/RS485 Modbus, optional HART
Overview
The Hydraflow W is a wall-mount clamp-on ultrasonic flow and BTU meter for industrial and utility pipework from DN25 to DN1200, suited to water and energy utilities, district cooling networks and process plant where large lines must be metered without breaking into the pipe. The transducers fit to the pipe exterior, so installation needs no shutdown and no welding.
It measures bidirectional flow from ±0.03 m/s to ±12 m/s (±0.09 to ±40 ft/s) at ±1% of reading accuracy, with an optional 0.5% version and 0.2% repeatability. With two PT1000 RTD inputs on the energy version, the same meter reports thermal energy for heating and cooling BTU applications. Transducer cable runs of up to 274 m let the transmitter sit well away from the measurement point.
The PC/ABS transmitter carries an IP65 rating and the encapsulated ABS transducers are IP68 rated for buried or flooded pits. Outputs include 4 to 20 mA (max load 750Ω) and a 0 to 10 kHz pulse output, with RS232/RS485 Modbus and optional HART communication. The transmitter operates from −20 to 60°C, with transducers rated to 80°C as standard and to 130°C in the high-temperature version.
Everything for specification & install
Specifications
Full technical data below. Refer to the datasheet for ordering codes and dimensional drawings.
Technical Data
| Pipe Size (mm) | DN25 to DN1200 |
| Flow range (m/s) | ± 0.09 ft/s to ±40 ft/s (±0.03m/s to ±12m/s) |
| Accuracy (%) | ±1 of reading (optional: 0.5%) |
| Repeatability (%) | 0.2 of reading |
| Inputs (%) | 2 x Temp. PT1000 RTD (energy version only) |
| Transmitter | PC/ABS, IP65 |
| Transducer | ABS, IP68 encapsulated design double shielded transducer cable |
| Cable length (m) | upto 274 |
| Power supply | 10 to 36 VDC/1A or 90 to 245 VAC |
| Temperature (°C) | Transmitter: -20 to 60 Transducer: -20 to 80 (standard), -40 to 130 (high temp. version) |
| Outputs | Analog output: 4 to 20mA, max load 750Ω Pulse output: 0 to 10KHz |
| Communication | RS232 / RS485 Modbus, HART(optional) |
| Display | 240*128 back lit LCD |
| Humidity | Upto 99% RH, non-condensing |
