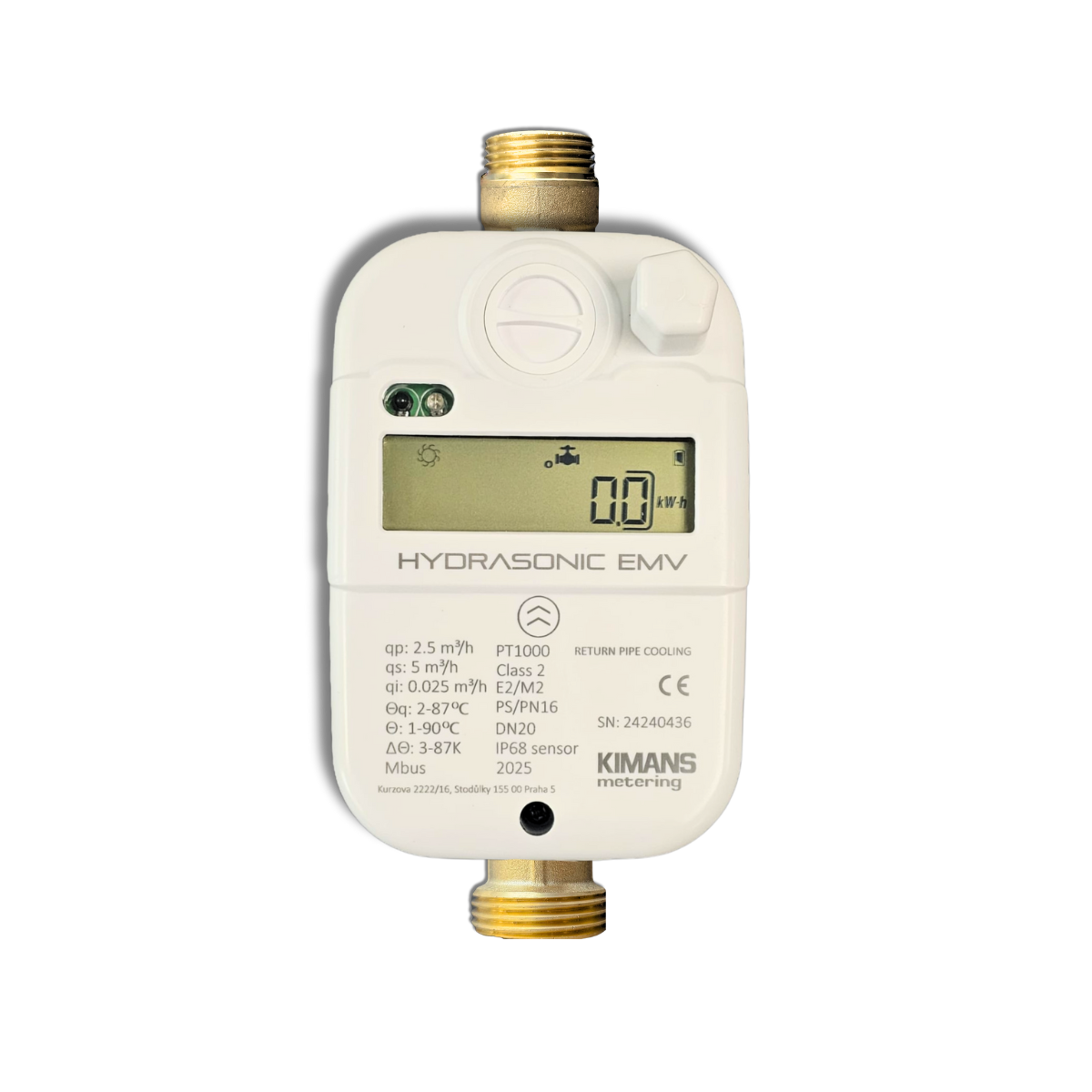

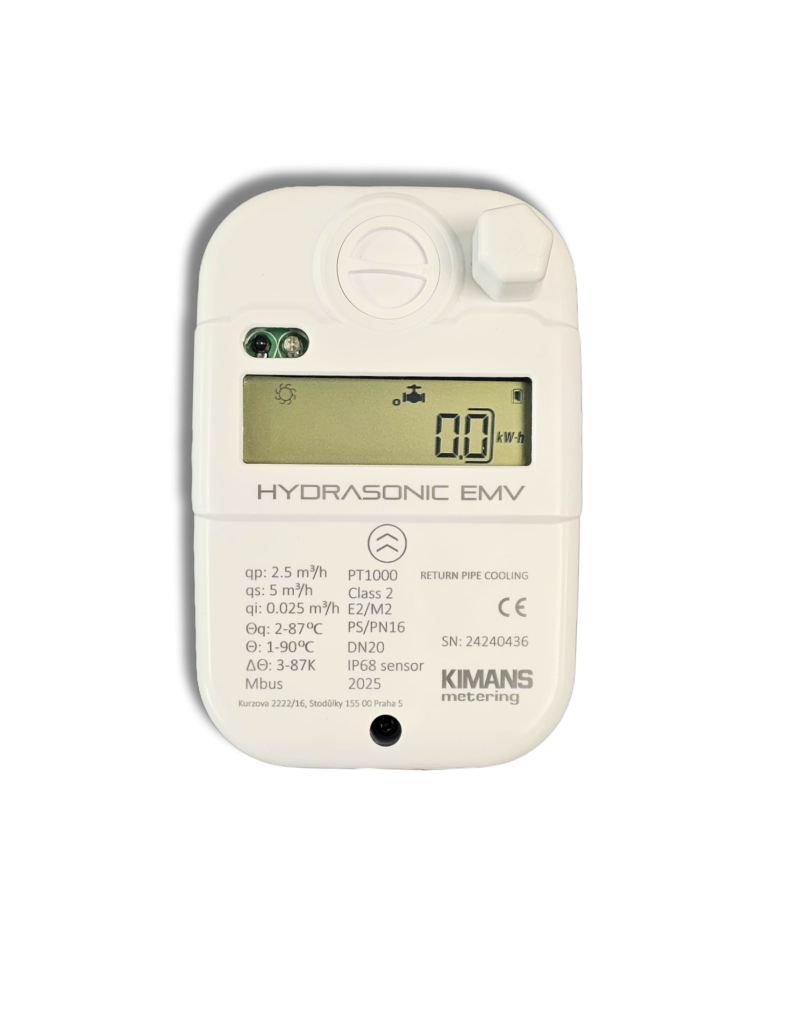

Hydrasonic EMV Ultrasonic energy meter with control valve
Thermal energyAn ultrasonic BTU meter and motorized energy valve in one device, metering heating and cooling energy to Class 2 accuracy across DN15-DN40 while actively modulating flow to hold target delta T
- Integrated ultrasonic BTU meter and motorized energy valve for combined metering and flow control
- Class 2 accuracy across DN15-DN40, qp 1.5-10 m³/h
- Holds target delta T over a 2 – 90 K difference range; temperature range 4 – 95 °C
- Multi-protocol comms: Optical / M-Bus / RS-485 / LoRaWAN / NB-IoT / Zigbee / wMBus
- IP68 rated; immune to magnetic interference up to 100 kA/m
Overview
The Hydrasonic EMV is an ultrasonic thermal energy (BTU) meter combined with a motorized energy control valve in a single device, built for heating and cooling systems that need to bill consumption and regulate flow at the same point. Across DN15 to DN40 it measures thermal energy to Class 2 accuracy while its integrated valve modulates or shuts off flow remotely to hold the target delta T.
For district cooling and central plant networks, controlling delta T is where energy and money are lost. The EMV combines metering and active flow control so operators can correct low-delta-T faults and curb over-consumption without adding a separate field valve, supporting a temperature difference range of 2 – 90 K across a working temperature of 4 – 95 °C.
The meter pairs a two-wire PT1000 temperature sensor set with an 8-bit LCD display, carries an IP68 rating, and withstands magnetic fields up to 100 kA/m without losing metering or transmission accuracy. Communication spans Optical, M-Bus, RS-485, LoRaWAN, NB-IoT, Zigbee and wMBus, powered by a 3.6 V lithium battery (up to 6 years) or external DC24V.
Everything for specification & install
Specifications
Full metrological data per EN 1434. Refer to the datasheet for ordering codes and dimensional drawings.
Technical Data
| Diameter | Min. Flow | Norm. Flow | Max. Flow | Length |
| qmin (m3/h) | qp (m3/h) | qmax (m3/h) | mm | |
| DN15 | 0.015 | 1.5 | 3 | 130 |
| DN20 | 0.05 | 2.5 | 5 | 130 |
| DN25 | 0.07 | 3.5 | 7 | 160 |
| DN32 | 0.12 | 6 | 12 | 180 |
| DN40 | 0.2 | 10 | 20 | 200 |
| Accuracy | Class 2 | |||
| Connection type | Threaded connection | |||
| Pressure Loss | ≤0.02MPa | |||
| Max. working pressure | 1.6MPa | |||
| Temperature sensor | T30/T50/T70; Standard T30 | |||
| Data Storage | 1.5m standard two-wire PT1000 paired temperature sensor (wire length can be reserved) |
|||
| Communication | Optical/MBus/RS-485/LoRaWAN/NB-IoT/Zigbee/wMBus | |||
| Power supply | 3.6V Lithium battery/External DC24V | |||
| Protection grade | IP68 | |||
| Environmental | Class A | |||
| Temperature range | (4 ~ 95) °C | |||
| Temperature difference range | (2 - 90) K | |||
| Installation method | water inlet or water return | |||
| Installation position | Horizontal or vertical | |||
| Battery life | Upto ≥ 6 years | |||
| Display | 8-bit LCD liquid crystal display | |||
| Anti- magnetic interference | The meter shall maintain accurate metering and remote transmission performance when exposed to a magnetic field with an intensity of up to 100 kA/m |
|||
Dimensions
| Nominal diameter | DN15 | DN20 | DN25 | DN32 | DN40 |
| Thread | G 3/4B | G1B | G1 1/4B | G1 1/2B | G2B |
| L (mm) | 130 | 130 | 160 | 180 | 200 |
| W (mm) | 88 | 88 | 88 | 88 | 88 |
| H (mm) | 125 | 129 | 136 | 139 | 149 |
