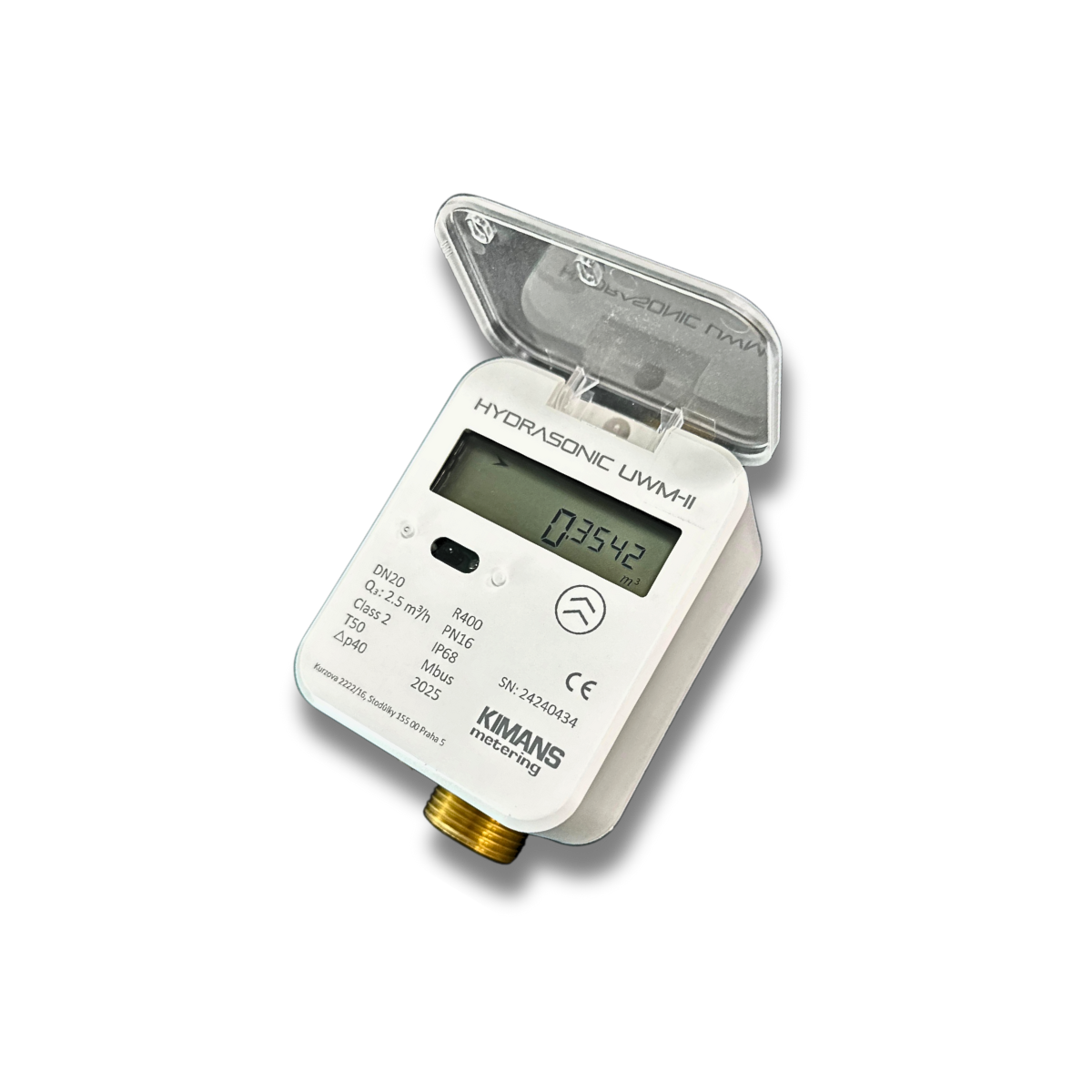

Hydrasonic UWM-II Ultrasonic water meter
Water flowA DN15-DN25 static ultrasonic water meter with no moving parts, delivering OIML Class 2 / R400 accuracy from a 2 l/h start flow, IP68 protection, PN16 rating, M-Bus communication and up to 10 years of battery life
- Sizes: DN15-DN25, Q3 2.5 / 4 / 6.3 m³/h
- Accuracy: OIML Class 2, R400 standard; start flow from 2 l/h
- Pressure & ingress: PN16, IP68 protection
- Communication: M-Bus standard; RS485, pulse, LoRaWAN, NB-IoT, Sigfox optional
- Battery: 8 years standard, 10 years optional
Overview
The Hydrasonic UWM-II Threaded is a static ultrasonic water meter for residential and commercial clean-water metering, using transit-time measurement to capture consumption accurately from a 2 l/h start flow so utilities account for every drop. Available in DN15, DN20 and DN25 with Q3 ratings of 2.5, 4 and 6.3 m³/h, it is supplied as standard at metrological class R400 and OIML accuracy Class 2.
With no moving parts to wear or foul, this smart water meter sustains its accuracy across long deployments and carries an IP68 rating for pit and flooded-chamber installation, plus a PN16 pressure rating and an operating range of -15°C to +55°C. Leak and burst alarms, on-board logging and a compact threaded body make it ready for retrofit AMI rollouts.
M-Bus communication is standard, with RS485, pulse, LoRaWAN, NB-IoT and Sigfox available as options to fit smart-metering and AMI programs worldwide. Battery life is 8 years standard, extendable to 10 years, with one year of daily data and 24 months of historical data held in non-volatile EEPROM.
Everything for specification & install
Specifications
Full technical data below. Refer to the datasheet for ordering codes and dimensional drawings.
Technical Data
| Nominal diameter DN | mm | DN15 | DN20 | DN25 |
| Length | mm | 110 | 130 | 160 |
| Q3 | m3/h | 2.5 | 4 | 6.3 |
| Q4 | m3/h | 3.125 | 5 | 7.875 |
| Start Flow | l/h | 2 | 2 | 3 |
| Metrological Class | 100/125/160/200/250/400/500/630/800 (standard R400) | |||
| Accuracy Class | Class 2 | |||
| Pressure Drop | Δp40 | |||
| Pressure Rating | PN16 | |||
| Temperature | T30/T50/T70; Standard T30 | |||
| Data Storage | 1 year of daily data storage, 24 months historical data; Non-volatile EEPROM | |||
| Communication | M-Bus (standard) - RS485, Pulse, LoRaWAN, NB-IoT, Sigfox (optional) | |||
| Power | 3.6 VDC (Battery); 24 VDC (Optional) | |||
| Protection Class | IP68 | |||
| Operating Temperature | Temperature: -15°C to +55°C, Ambient relative humidity: <90% |
|||
| Installation | Horizontal or Vertical | |||
| Battery Life | 8 years (standard), 10 years (optional) | |||
Dimensions
| Nominal diameter DN | Unit | DN15 | DN20 | DN25 |
| Connection | - | G3/4 | G1 | G11/4 |
| Length (L) | mm | 110 | 130 | 160 |
| Width (W) | mm | 69 | 69 | 69 |
| Height (H) | mm | 85 | 86.5 | 87 |
