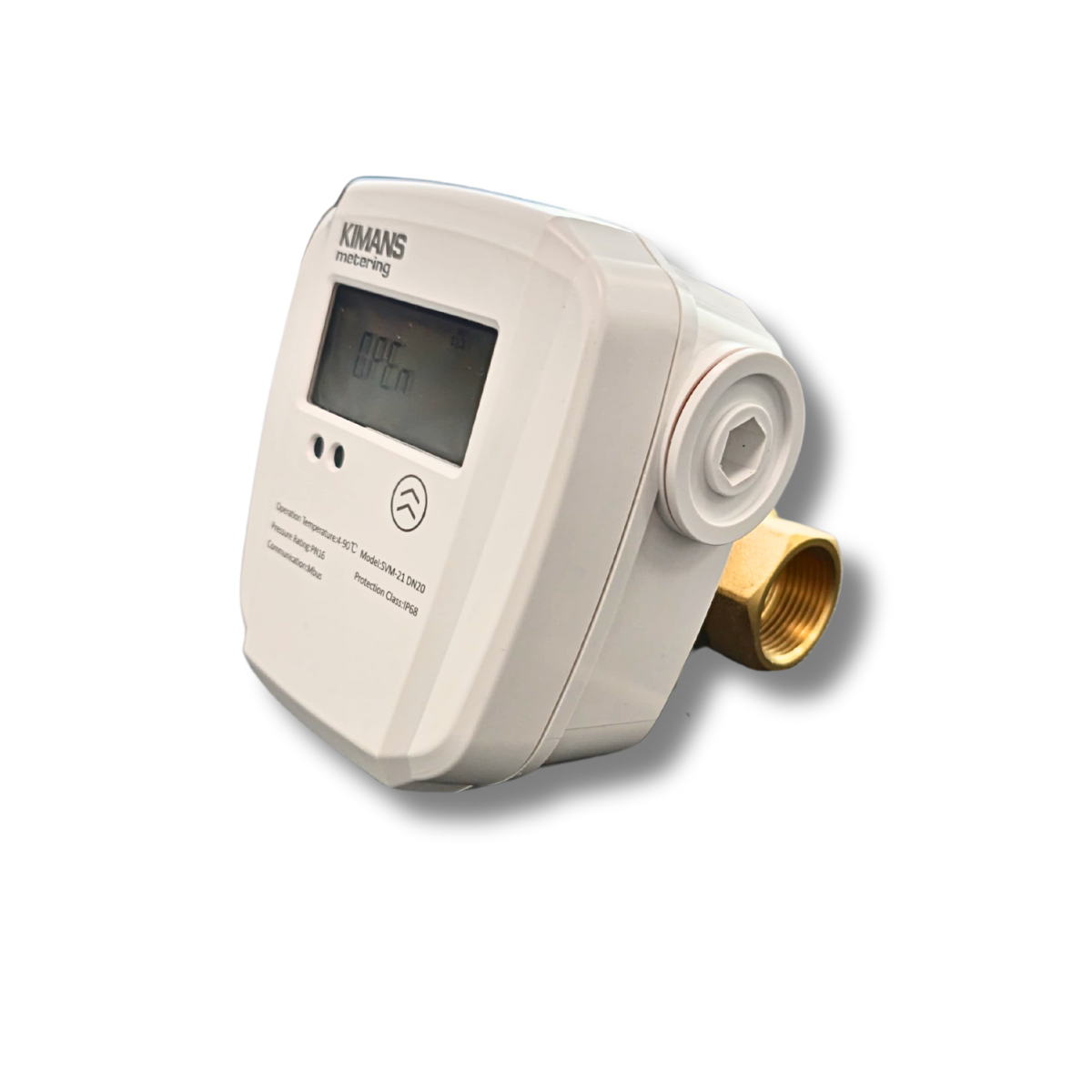

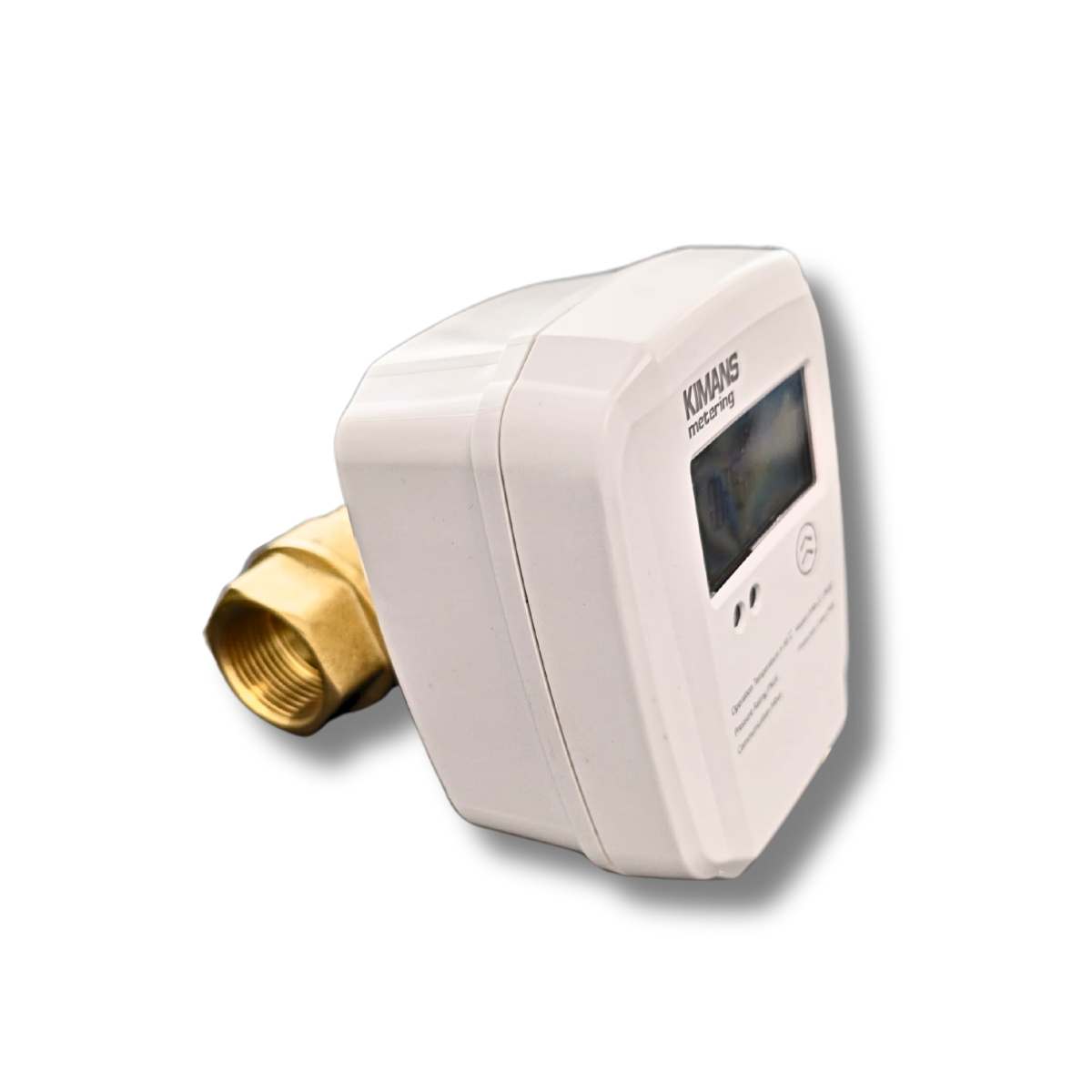

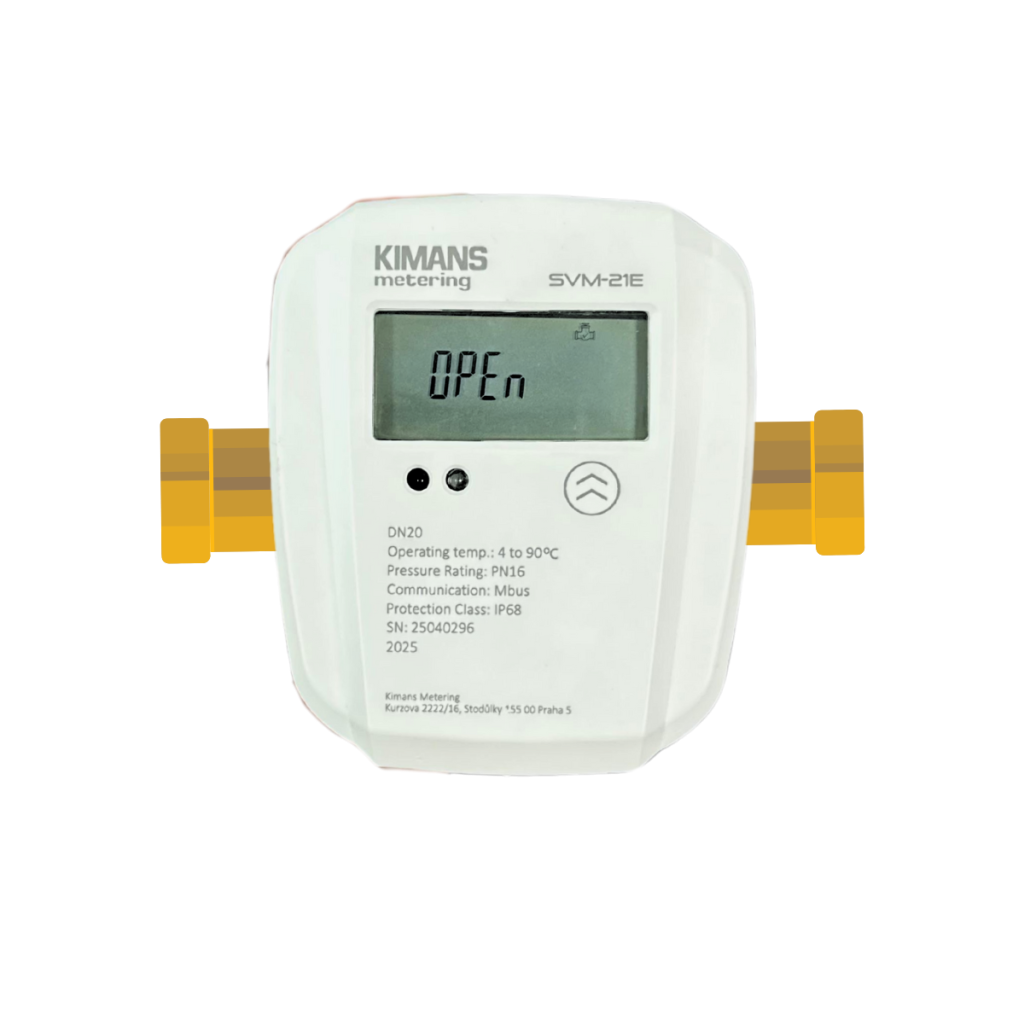

SVM-21E M-Bus smart control valve
A battery-powered DN15-DN40 threaded M-Bus smart valve for chilled-water and prepaid applications, with an IP68 motor and housing, manual override, up to 16-year battery life, and remote OPEN/CLOSE control with error reporting
- DN15 to DN40 threaded M-Bus smart valve for remote flow disconnection
- Wired M-Bus control compatible with all M-Bus masters, with OPEN/CLOSE commands and error reporting
- IP68 waterproof motor and IP68 brass housing for high-condensation chilled-water duty
- Battery powered with lifetime up to 16 years
- Ambient range -25 to 65 °C; operating medium 4 to 90 °C
Overview
The SVM-21E is a battery-powered, threaded M-Bus smart valve that gives utilities and district cooling operators remote open/close control over conductive-liquid and chilled-water lines without sending a technician to site. Built for prepaid and AMI programs, it executes OPEN/CLOSE commands over wired M-Bus and reports both valve-operation and M-Bus communication errors back to the master for revenue protection and fault visibility.
Engineered for high-condensation chilled-water duty, the SVM-21E pairs an IP68-rated motor with additional sealing and an IP68 brass housing, so it holds up in moisture-heavy plant rooms and submerged installations. It operates across an ambient range of -25 to 65 °C and an operating-medium range of 4 to 90 °C, with a manual override isolation function for on-site intervention.
Available from DN15 to DN40 and compatible with all M-Bus master systems, the valve is rated to PN 16 as standard (PN 20 and PN 25 optional) and runs on a battery with a lifetime of up to 16 years, keeping field maintenance and total cost of ownership low across large meter populations.
Everything for specification & install
Specifications
Full technical data below. Refer to the datasheet for ordering codes and dimensional drawings.
Technical Data
| Nominal Diameter (mm) | DN15 to DN40 |
| Ambient Temperature (°C) | -25 to 65 |
| Operating Temperature (°C) | 4 - 90°C(lower/higher temperature on demand) |
| Pressure Rating (Bar) | PN 16(standard)/PN 20 and PN 25(optional) |
| Protection | IP68 |
| Communication | Wired M-Bus |
| Material of Construction (MOC) | Brass |
| Power Supply | Battery ; lifetime up-to 16 years |
| Mbus Cable Length | 1m |
| Data Read Option | Valve OPEN/CLOSE Command and Errors [Reporting errors : Valve operation error & M-Bus communication error] |
| Data Write Option | OPEN/CLOSE Command |
