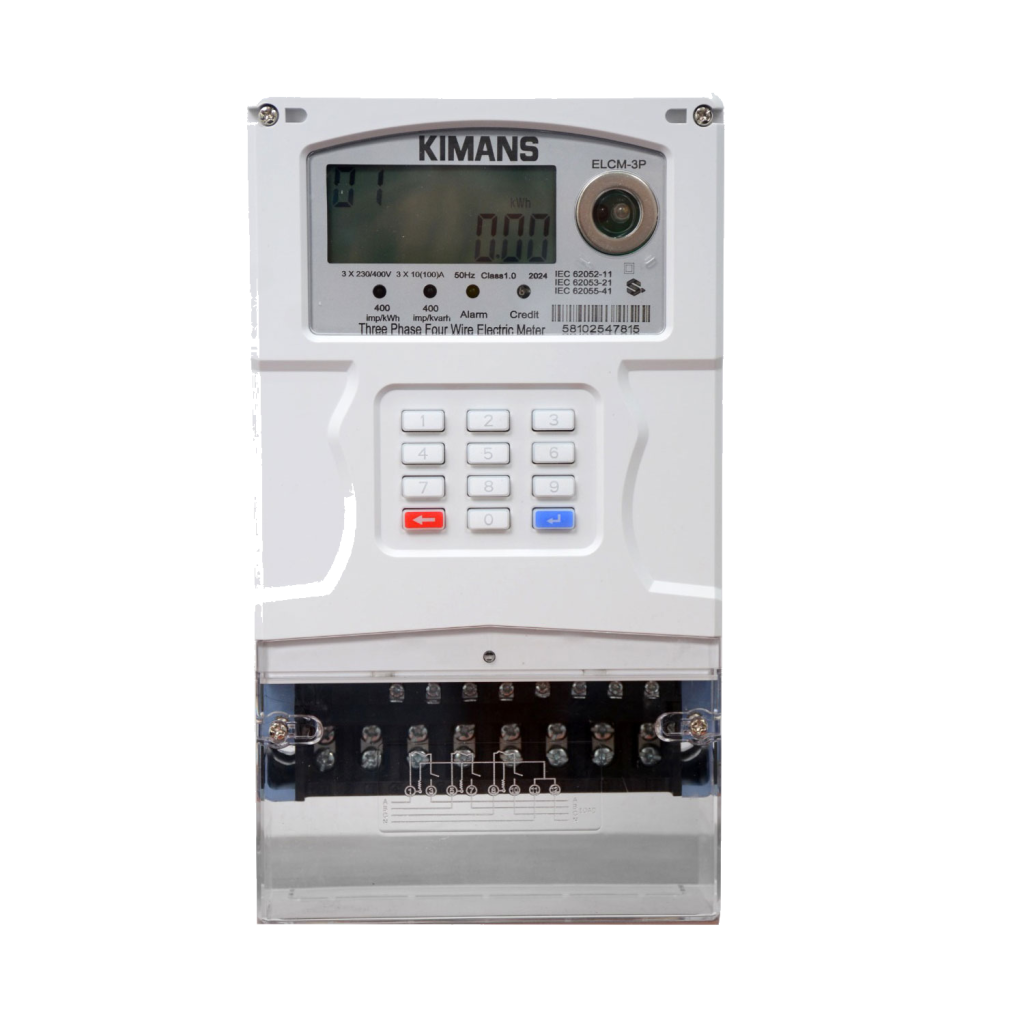

ELCM-3P Three-phase electricity meter
ElectricityAn STS-compliant, keypad three-phase electricity meter for prepaid metering, rated 3 x 230 V with 10 A basic / 100 A maximum current, Class 1.0 active energy accuracy, terminal-cover tamper detection, IP54 protection, and up to 8-year battery backup
- STS-compliant keypad three-phase electricity meter with 20-digit token recharge
- Nominal 3 x 230 V, working range 70%-120% Un, 50-60 Hz
- Basic current 10 A, maximum current 100 A, starting current 30 mA
- Active energy Class 1.0; reactive energy Class 2.0
- Terminal-cover open-detection sensor for tamper protection and revenue security
Overview
The ELCM-3P is an STS-compliant, keypad-type three-phase electricity meter built for prepaid and revenue-protection programs across utilities and AMI deployments. Customers recharge by entering a 20-digit token on the integrated keypad and check status through short codes shown on the LCD, removing the need for physical billing visits.
Anti-tamper design, including a terminal-cover open-detection sensor, protects utility revenue, while an optional communication module links the meter to a data concentrator for smart-metering rollouts. The meter operates at a nominal 3 x 230 V across a 70%-120% Un working range and 50-60 Hz, with a basic current of 10 A and a maximum of 100 A.
Active energy is measured to Class 1.0 and reactive energy to Class 2.0, with a starting current of 30 mA and a 400 imp/kWh constant. The meter carries an IP54 protection class and Class II protection degree, with battery backup rated for a lifetime of up to 8 years to preserve data and clock through outages.
Everything for specification & install
Specifications
Full technical data below. Refer to the datasheet for ordering codes and dimensional drawings.
General
| Application | Three Phase keypad prepaid KWH meter |
| Indicator | Liquid Crystal Display |
| Numerical keypad | 20 digit token for recharge input |
| Operating temperature (°C) | -25 to +70 |
| Storage temperature (°C) | -20 to +85 |
| Battery supply | 3.3 VDC |
| Battery lifetime | up to 8 years |
| Protection class | IP54 |
| Protection degree | Class II |
Technical Parameters
| Nominal Voltage | 3 x 230V |
| Working Voltage Range | 70% ~ 120%Un |
| Nominal Frequency | 50-60Hz |
| Basic Current (lb) | 10A |
| Maximum Current (lmax) | 100A |
| Starting Current (lst) | 30mA |
| Active Energy Constant | 400imp/kWh |
| Active Energy Accuracy | Class 1.0 |
| Reactive Energy Accuracy | Class 2.0 |
| Power Consumption in Voltage Circuit | <2W <8VA |
| Power Consumption in Current Circuit | <1VA |
Calculator Details
| Display Indication | LCD-8 digit + special characters |
| Units | Kwh |
| Total values | 99,999 |
| Values displayed (main logo) | Date - Time - Values of consumption - Total of purchase credit - low credit alarm - Interest Token status - Valve status - Additionally, event memory and Special short codes |
Dimensions
| Nominal size | Width | Length | Height |
| mm | W | L | H |
| 147.3 | 258.4 | 64 |
